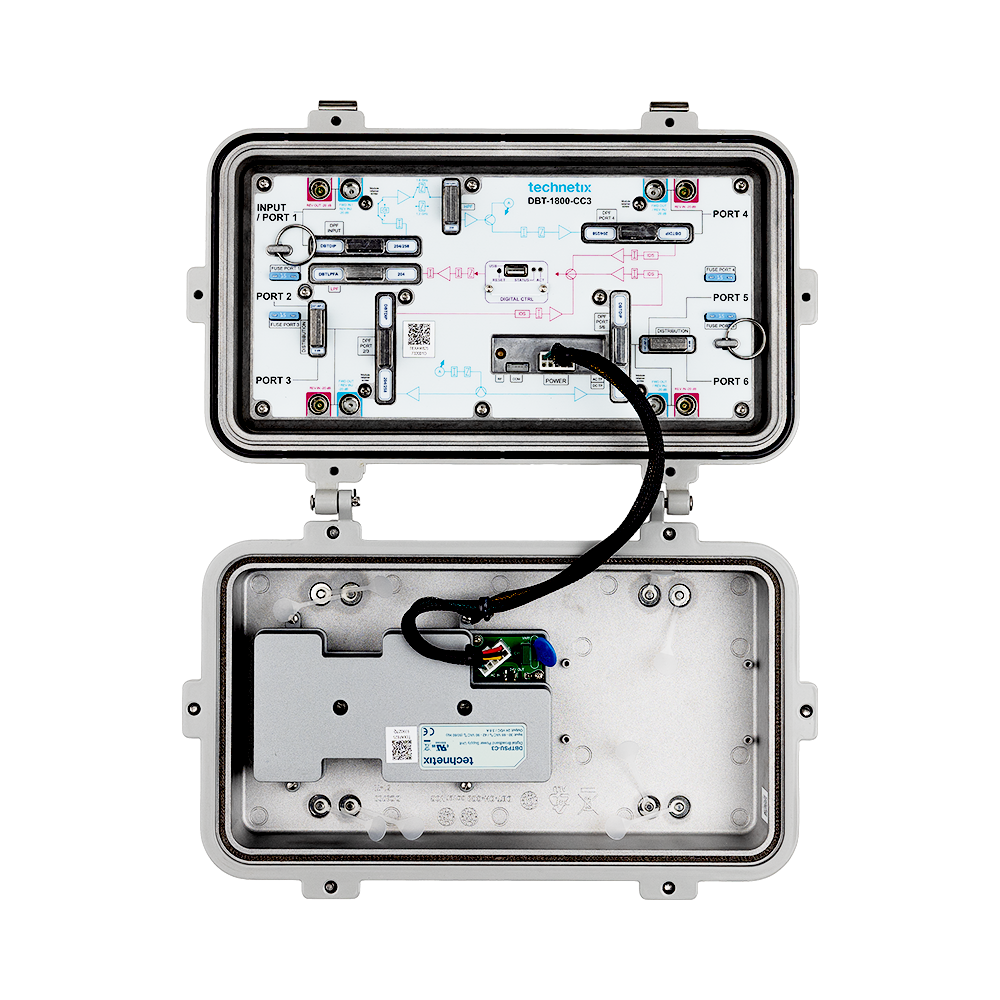

DBT-1800-CC3 Trunk 1.8 GHz system amplifier
The Technetix DBT-1800-CC3 is a five-port trunk amplifier with an operational downstream gain of 49 dB at 1794 MHz, and 32 dB at 684 MHz upstream. Operator benefits from options such as software-controlled low input mode, and pluggable diplex filters for easy in-field upgrades and support for splits of:
- 85/102 MHz
- 204/258 MHz
- 396/492 MHz
- 492/606 MHz
- 684/834 MHz
Other features include:
- DOCSIS® 4.0-ready (1794 MHz/684 MHz) and SCTE 279 2022 standard compliant
- Full electronic smart control; local and remote setup
- Agile AGC/ALSC functionality
- Downstream auto-alignment including short cable scenario with digital switchable cable simulator
- 3 W saved per active output port in low power mode, taking maximum TCP from 70 dBmV to 67 dBmV
- A drop-in unit compatible with CCOR®/ARRIS® FM9xx housings
