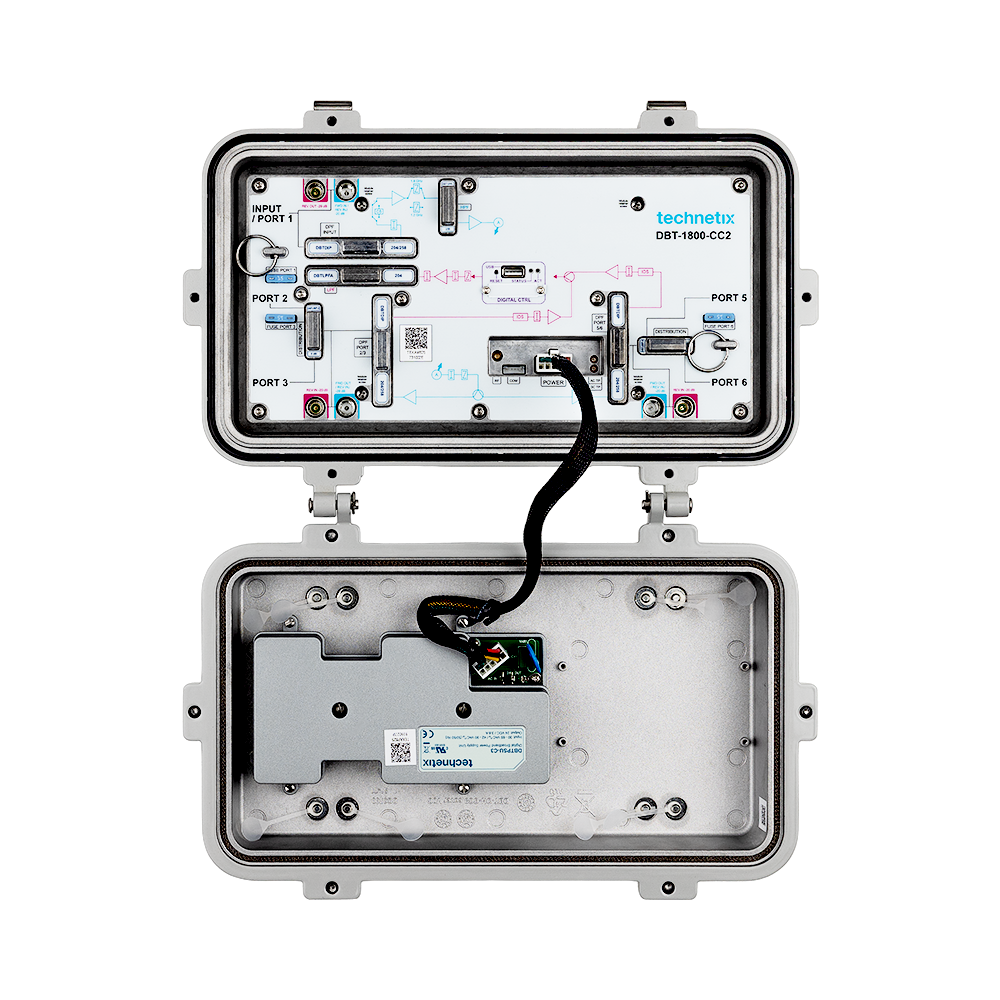

DBT-1800-CC2 Bridger 1.8 GHz smart amplifier
Our DOCSIS 4.0-ready, five-port high-gain output system amplifier delivers 49 dB downstream gain at 1794 MHz, and 32 dB upstream at 684 MHz. Easy to upgrade in the field with pluggable diplex filters, and options for software-controlled low input mode, the Technetix DBT-1800-CC2 bridger amplifier supports the following splits:
- 85/102 MHz
- 204/258 MHz
- 396/492 MHz
- 492/606 MHz
- 684/834 MHz
Other features include:
- Full electronic smart control; local and remote setup
- Agile AGC/ALSC functionality
- Downstream auto-alignment including short cable scenario with digital switchable cable simulator
- 3 W saved per active output port in low power mode, taking maximum TCP from 70 dBmV to 67 dBmV
- SCTE 279 2022 standard compliant
- A drop-in unit compatible with CCOR®/ARRIS® FM9xx housings
