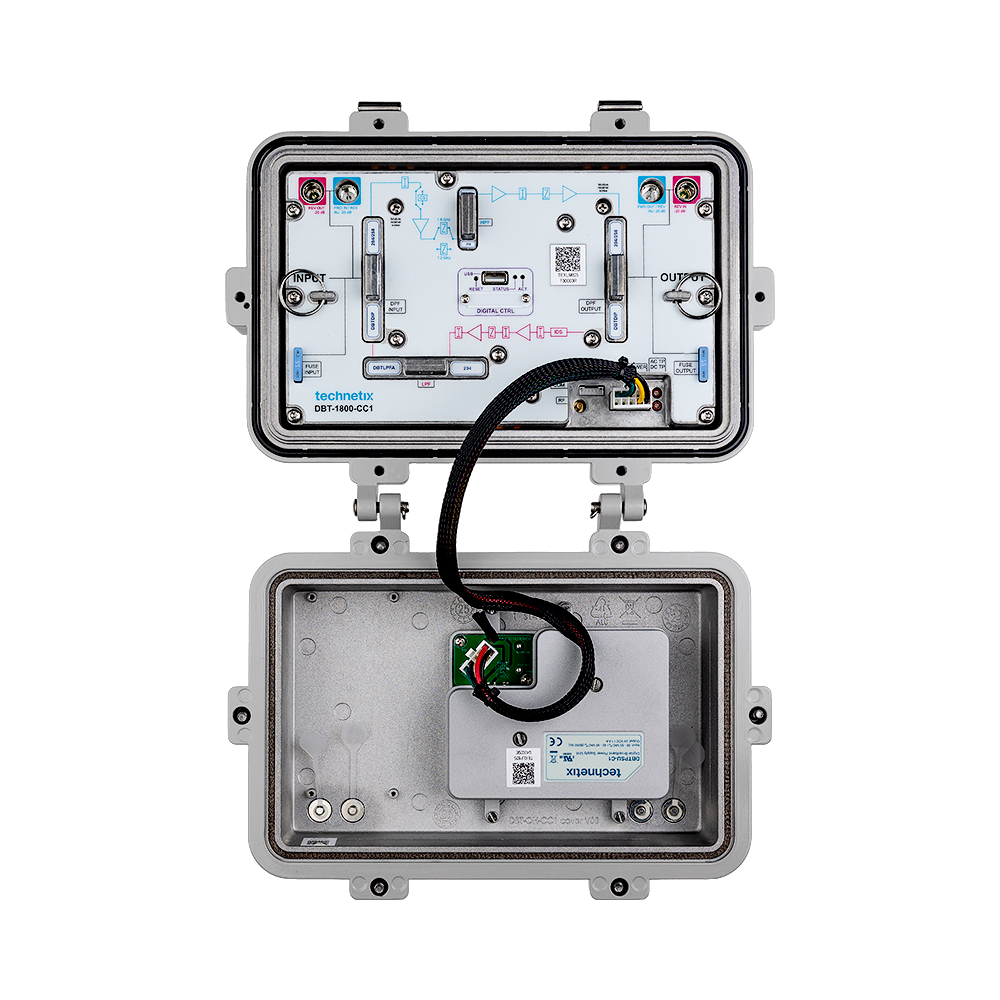

DBT-1800-CC1 Line Extender 1.8 GHz smart amplifier

Developed for high reliability, the 1.8 GHz-ready Technetix DBT-1800-CC1 line extender amplifier delivers 46 dB downstream gain at 1794 MHz and an upstream gain of 32 dB at 684 MHz. Easy to upgrade in the field using pluggable diplex filters, our DBT-1800-CC1 supports the following splits:

• 85/102 MHz
• 204/258 MHz
• 396/492 MHz
• 492/606 MHz
• 684/834 MHz

The unit is fully backward-compatible with legacy frequencies, with the option for software-controlled low input mode.

Other features include:

• Full electronic smart control; local and remote setup
• Agile AGC/ALSC functionality
• Downstream auto-alignment including short cable scenario with digital switchable cable simulator
• 3 W saved per active output port in low power mode, taking maximum TCP from 70 dBmV to 67 dBmV
• SCTE 279 2022 standard compliant
• Drop-in unit, compatible with CCOR®/ARRIS® FM33x housings
